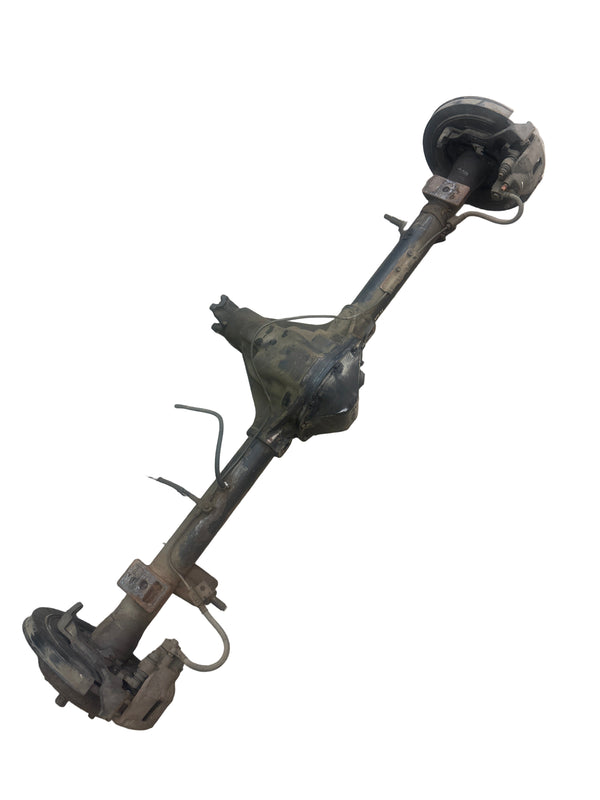

Used OEM Dana 44 Rear Axle, Disc Brake (CONVERSION), NON-ABS design. Set up for spring-over configuration with perches on top. Should fit any Jeep Cherokee XJ (1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001). Good condition overall with some normal wear. These units are sold as is; Cleaning and inspection is recommended. Brakes, Brake Components, Bearings, Races, U-joints and/or any other wear items may need to be replaced.
** $300 FREIGHT SHIPPING in Contiguous US. **

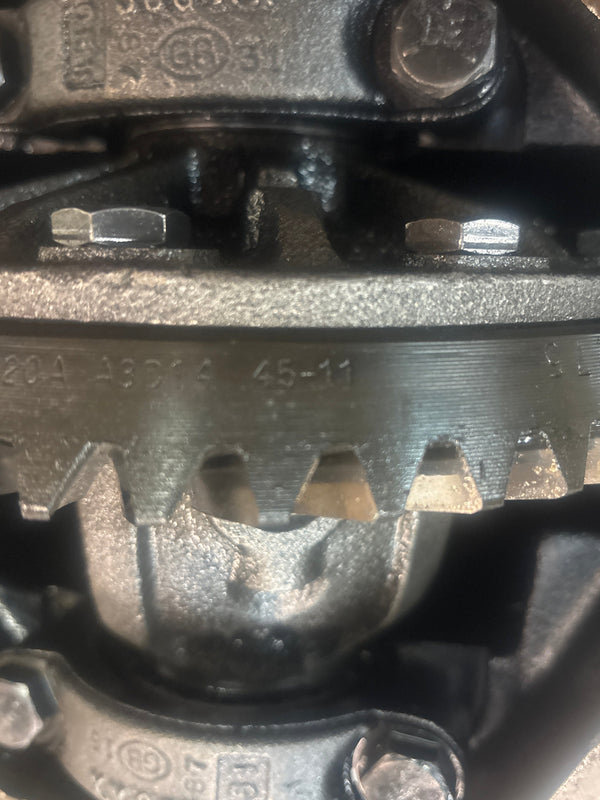

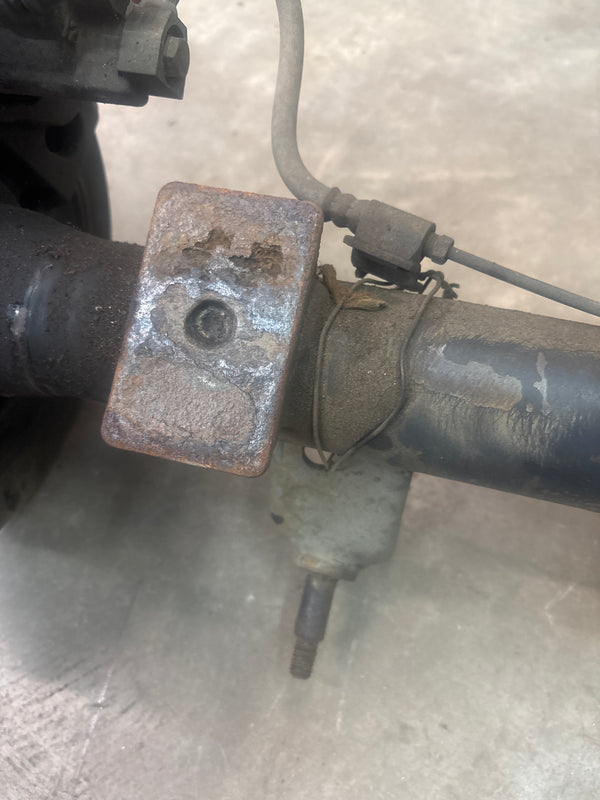

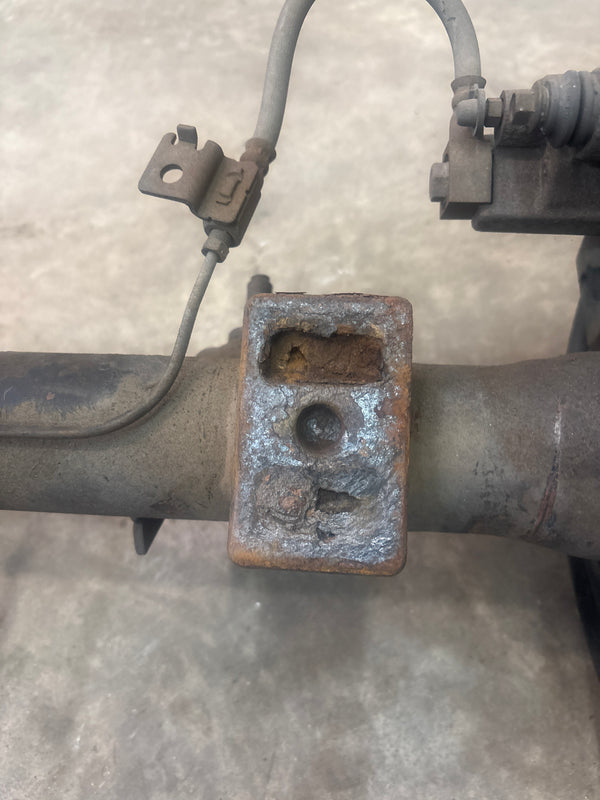

Tag Number: N/A | 45-11 Ring and Pinion, 4.09:1 ratio | Spring Pads 43 5/8” Center to Center | 55” Outer Flange to Outer Flange | 61 7/8” Wheel to Wheel | DOES NOT include Harnesses, Hoses, Poppet Vents, Linkage, Arms or any other parts not seen in pictures.

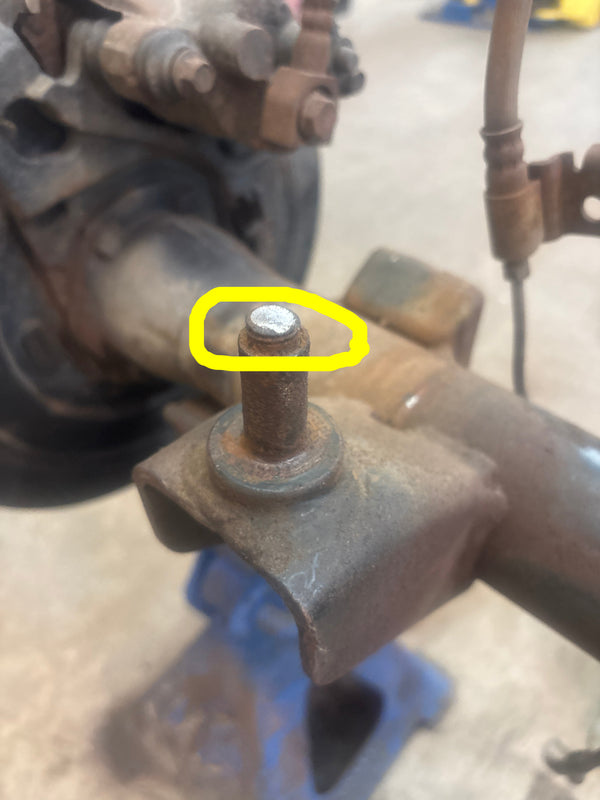

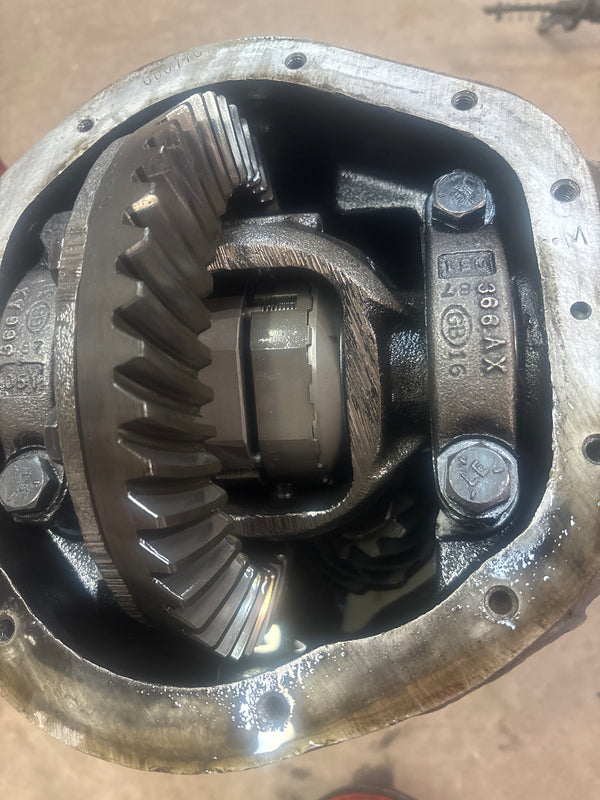

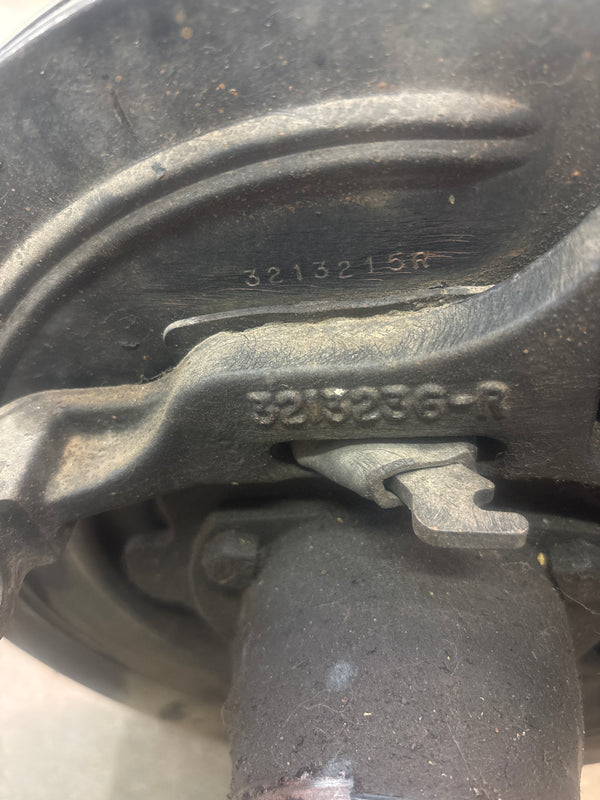

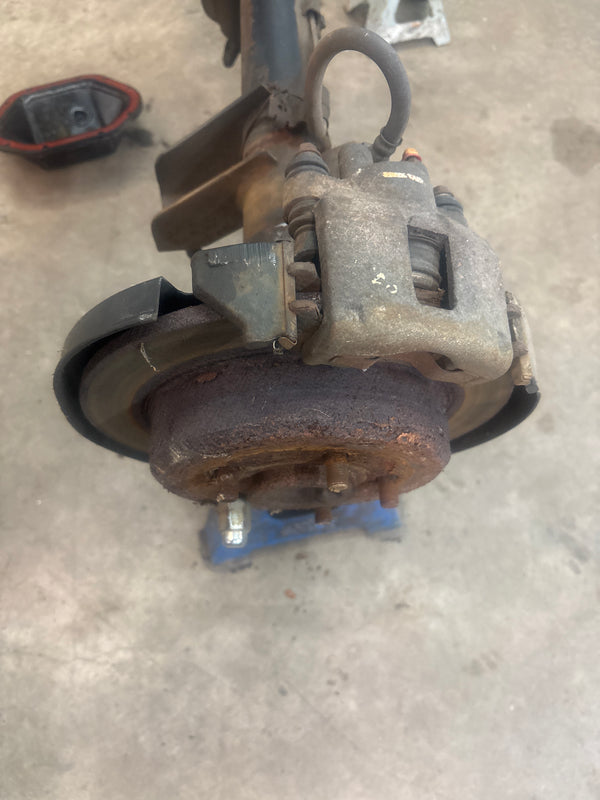

Brake rotors and pads need to be replaced. Driver side shock mount threads are broken with about 2 threads remaining. Ring and pinion listing from Dana shows 81-95 CJ/Wrangler but has 10-4-77 date stamp on ring. We could not identify exact Dana listing for housing - stamped 605342 3TV 4 2 7 3B. This axle has unknown miles, donor vehicle was 1990 Cherokee. Dana 44 was only used on XJs in 1987 and did not come with 4.10 / 4.09 ratio. Axle has been previously rebuilt with PowerTrax 2210-LR Locker in the carrier which is in good working order.
*We may have multiple of this item in similar condition. The one you receive may not be the exact one pictured. Contact us if you have any questions or would like a picture of the exact one before we send it.
